Micro Catheter for Coronary

Mainly Usage

       The micro catheter is intended use for the infusion of contrast media, medicine or embolic material into coronary vasculatures, also intended for providing support to the placement of guide wires or guide wire exchange.

Product Structure

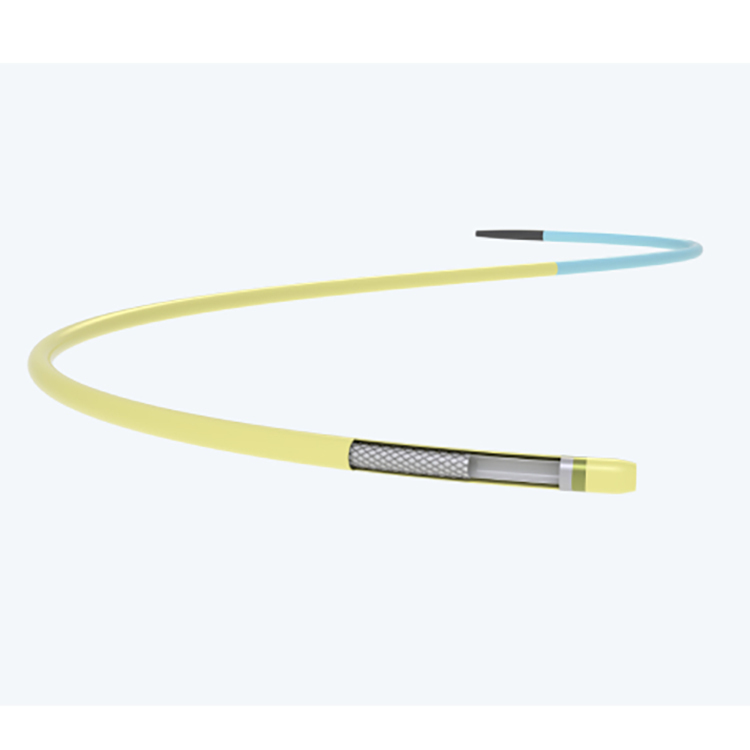

     The Micro catheter consists of tube hub, protect sheath, catheter body, developing ring, which package is Paper plastic pouch ,and sterilized by EO. The   materials are Pebax, Eurelon,304V Stainless steel, PTFE coating, Platinoiridium, TPU, PC, Platinoiridium, Hydrophilic coating.

Product Type

   MCS02-6   MCS03-06

Application Scope

     The product is used to inject diagnostic agents (such as contrast agents), therapeutic agents (such as pharmaceutical preparations, embolic materials), and support appropriate guidewire into the peripheral vasculature.

Characteristics

1.Excellent radiopaque, closed-loop platinum/iridum marker band embeded for smooth transition
2.PTFE inner layer designed to provide superb pushability when supporting for device advancement
3.Higher density stainless steel braid structure throughout the catheter shaft, providing enhanced tensile strength for increased crossability
4.Hydrophilic coating and long taper design from proximal to distal: 2.8 Fr ~ 3.0 Fr for narrow lesion crossability

Instruction for Use

1. Take out the product from package.

2.Choose compatible guidewire with this Micro catheter.

3.Use Heparin saline to clean Micro catheter through Protect hoop and make sure the surface of the product is fully lubricated.

4.Insert guidewire into micro catheter.

5.Insert guidewire and micro catheter slowly into lesion location through Y-connector or sheath.

6.After micro catheter attaining the needed position, take diagnostic or therapeutic measures needed subsequently; Release hemostasis valve and withdraw micro catheter slowly from vessel.

Referece Model:

Peripheral
REF NO.	Outer Diameter		Inner Diameter		Usable    Length	Recommended   GW
	Distal Shaft	Proximal Shaft	Tip	Shaft
MCS02-6	0.93mm (2.8Fr)	1.00mm (3.0Fr)	0.68mm (0.027")	0.68mm (0.027")	130cm	0.53mm (0.021")
MCS03-6	0.93mm (2.8Fr)	1.00mm (3.0Fr)	0.68mm (0.027")	0.68mm (0.027")	150cm	0.53mm (0.021")
